| KYC F3 | ||
|---|---|---|
| Model | Double Cabin | Double Cabin |
| Chassis | Whole shaped and high intensity steel ofstraight beam | |

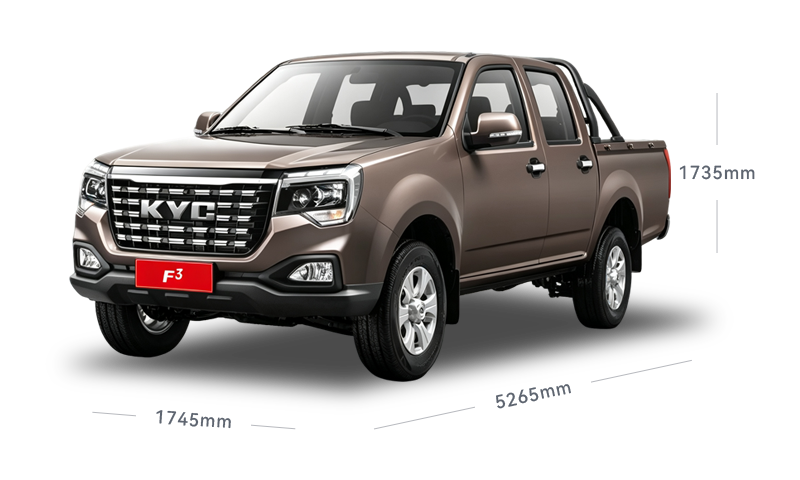

| Vehicles Dimensions(mm) | 5265×1745×1735 | |
| Cargo Dimensions(mm) | 1480×1465×465 | |
| Wheel base(mm) | 3020 | |
| GVW(kg) | 2550 | 2680 |
| Curb weight(kg) | 1480 | 1610 |
| Max. payload(kg) | 745 | 745 |
| Seats | 5 | 5 |
| Engine | DAM16KL(Euro VI) | D19TCIE3 |
| Fuel category | Gasoline | Diesel |
| Displacement(cc) | 1597 | 1999 |
| Rated power(kw) | 90 | 85 |
| Max. torque(N.m) | 152 | 285 |
| Max. speed(km/h) | 120 | 120 |
| Brake system | Front disc/Rear drum | |
| Tire | 225/70R15LT | |
| Rim material | Steel | |
| Baisc configuration | EPS、ABS、Remote key + Central locking + front power window、MP5+Reverse view、A/C | EPS、ESC、Dual air-bag、Remote key + Central locking +front power window、MP5+Reverse view、A/C、only CKD |
| Optional configuration | ESC, Dual air-bag, Leather seat | Leather seat |
