Build up the world-renowned
Chinese commercial vehicles
Build up the world-renowned
Chinese commercial vehicles
| KYC X1 (ICE) | ||||
|---|---|---|---|---|
| Model | Single Cabin | Double Cabin | ||
| Single rear tire | Double rear tire | Single rear tire | Double rear tire | |
| Chassis | Whole shaped and high intensity steel of straight beam | |||

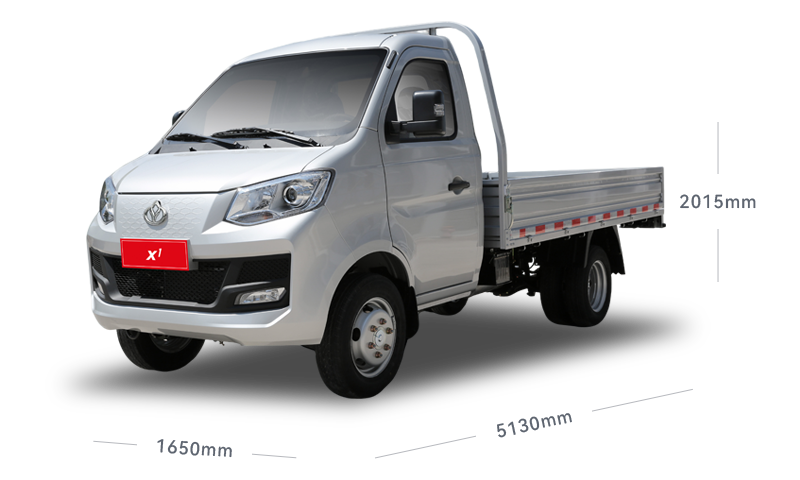

| Vehicles Dimensions(mm) | 4675×1600×2015 | 5130×1650×2015 | 5105×1600×2020 | 5455×1580×2020 |
| Cargo Dimensions(mm) | 2600×1500×360 | 3050×1550×360 | 2200×1500×360 | 2550×1450×360 |
| Wheel base(mm) | 2700 | 2990 | 2990 | 3400 |
| GVW(kg) | 2440 | 2830 | 2440 | 2830 |
| Curb weight(kg) | 1075 | 1200 | 1205 | 1300 |
| Max. payload(kg) | 1235 | 1500 | 910 | 1205 |
| Seats | 2 | 5 | ||
| Engine | DK12-10(Euro 5)/ DAM16KR(Euro 6d) | |||
| Displacement(cc) | 1240/1597 | |||
| Rated power(kw) | 65/90 | |||
| Max. torque(N.m) | 115/158 | |||
| Max. speed(km/h) | 90 | |||
| Brake system | Front disc/Rear drum | |||
| Tire | 165R14LT 8PR | |||
| Rim material | Steel | |||
| Baisc configuration | EPS、ABS、DRL、Dual speaker、MP3 | |||
| Optional configuration | Remote key+central locking、Front power window、MP5+Reverse view camera、A/C、175R14LT 8PR、CNG | |||
Sales: sales@kuayuegroup.com
Address:25-1,UNIT 1,BUILDING 2,XINNAN ROAD,LIANGJIANG DISTRICT, CHONGQING,CHINA
