| KYC T3 | ||||||
|---|---|---|---|---|---|---|
| Model | Single Cabin | Double Cabin | Single Cabin | Double Cabin | Single Cabin | Double Cabin |
| Single rear tire | ||||||
| Chassis | Integrated body-frame | |||||

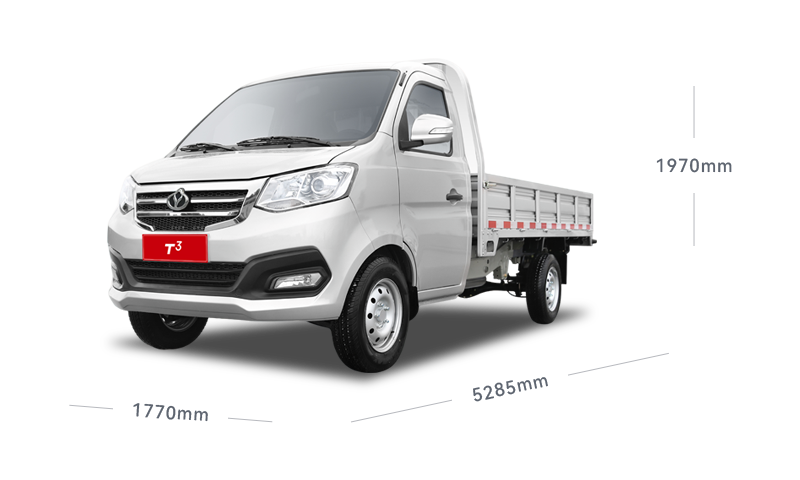

| Vehicles Dimensions(mm) | 4755×1700×1960 | 4990×1770×1970 | 5135×1700×1960 | 5285×1700×1970 | 5135×1700×1960 | 5285×1700×1970 |
| Cargo Dimensions(mm) | 2820×1600×380 | 2220×1600×380 | 3050×1600×380 | 2520×1600×380 | 3050×1600×380 | 2520×1600×380 |
| Wheel base(mm) | 3080 | 3080 | 3080 | 3250 | 3080 | 3250 |
| GVW(kg) | 2800 | 3045 | 2831 | 3095 | 2800 | 3070 |
| Curb weight(kg) | 1175 | 1225 | 1206 | 1275 | 1175 | 1250 |
| Max. payload(kg) | 1495 | 1495 | 1495 | 1495 | 1495 | 1495 |
| Seats | 2 | 5 | 2 | 5 | 2 | 5 |
| Engine | DK12-10(Euro 6d) | DK15-10(Euro 6d) | DAM16KR(Euro 6d) | |||
| Fuel category | Gasoline | Gasoline | Gasoline | |||
| Displacement(cc) | 1240 | 1499 | 1597 | |||
| Rated power(kw) | 65 | 82 | 90 | |||
| Max. torque(N.m) | 115 | 143 | 158 | |||
| Max. speed(km/h) | 90 | 90 | 100 | |||
| Brake system | Front disc/Rear drum | |||||
| Tire | 175R14LT | |||||
| Rim material | Steel | |||||
| Baisc configuration | EPS、ABS、DRL、MP3 | |||||
| Optional configuration | Remote key + Central locking ,front power window, MP5+Reverse view camera, A/C, CNG | |||||
