| KYC X3（ICE） | ||||
|---|---|---|---|---|
| Model | Single Cabin | Double Cabin | ||
| Single rear tire | Double rear tire | Single rear tire | Double rear tire | |
| Chassis | Whole shaped and high intensity steel of straight beam | |||

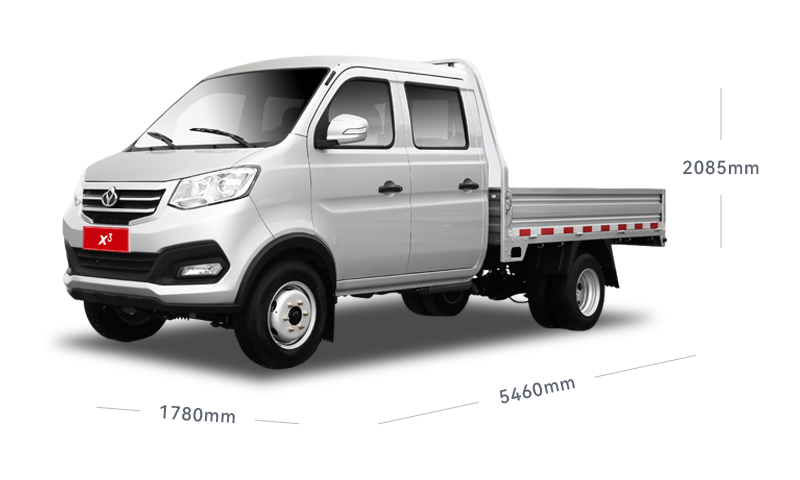

| Vehicles Dimensions(mm) | 5295×1735×2070 | 5280×1780×2070 | 5475×1735×2080 | 5460×1780×2085 |
| Cargo Dimensions(mm) | 3200×1600×360 | 3200×1680×360 | 2550×1600×360 | 2550×1680×360 |
| Wheel base(mm) | 3190 | 3190 | 3400 | 3400 |
| GVW(kg) | 2915 | 3455 | 3210 | 3290 |
| Curb weight(kg) | 1290 | 1360 | 1390 | 1470 |
| Max. payload(kg) | 1495 | 1720 | 1295 | 1495 |
| Seats | 2 | 5 | 2 | 5 |
| Engine | DK15-10(Euro 5)/DAM16KR(Euro 6d) | |||
| Displacement(cc) | 1499/1597 | |||
| Rated power(kw) | 82/90 | |||
| Max. torque(N.m) | 143/158 | |||
| Max. speed(km/h) | 90 | |||
| Brake system | Front disc/Rear drum | |||
| Tire | 185R14LT | 185R14LT | 185R14LT | 185R14LT |
| Rim material | Steel | |||
| Baisc configuration | EPS、ABS、DRL、Dual speakers、MP3 | |||
| Optional configuration | Remote key + central locking, Front power window, MP5+Reverse view camera, A/C ESC(only with DAM16KR), CNG | |||
